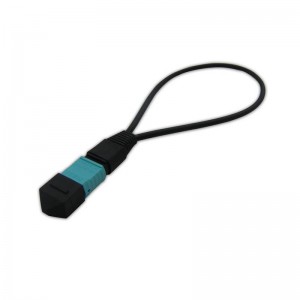

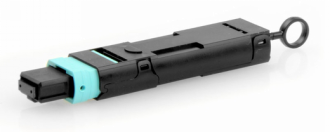

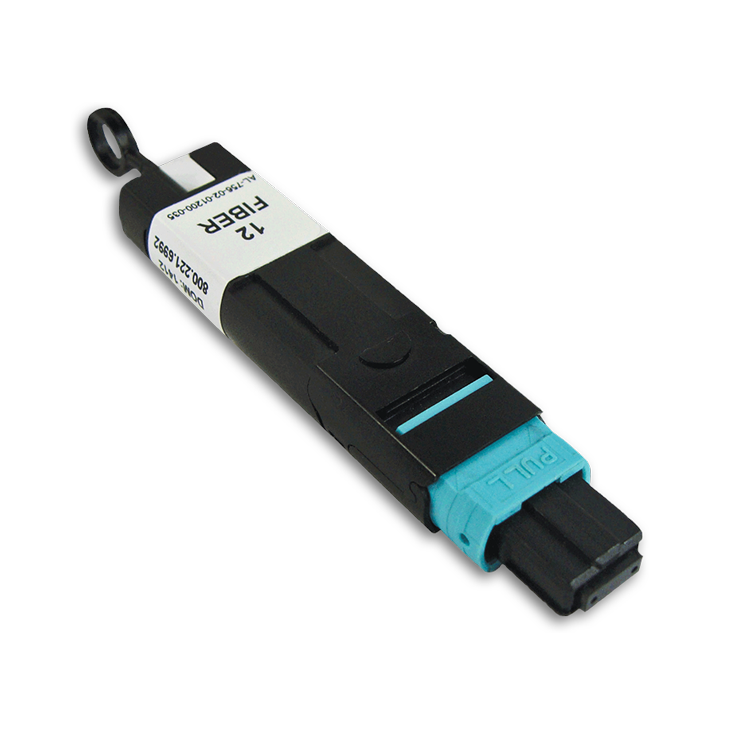

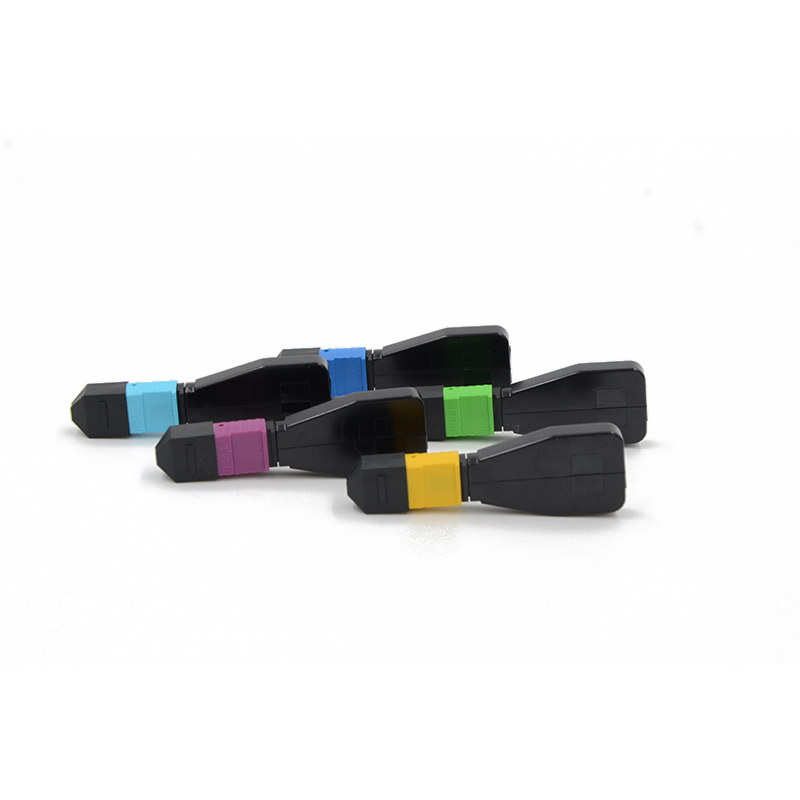

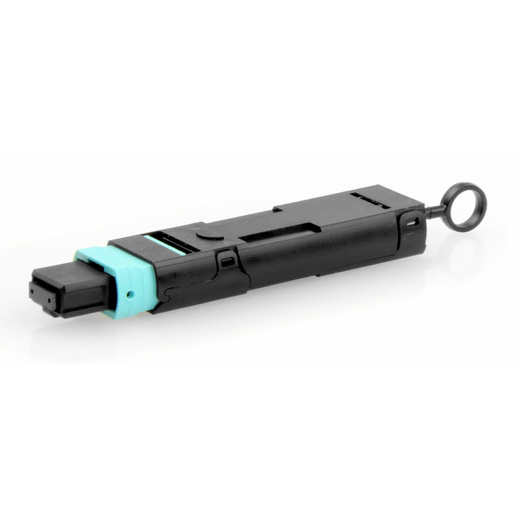

Designed for network diagnostics, testing system configurations, and device burn-in, the INTCERA’S MTP/MPO loopback modules can form an optical link for segment by segment testing by creating a loop of signal from transmitter to receiver within one MTP/MPO plug. It is packaged in a rugged, compact housing, providing an effective way of testing the transmission capability and receiver sensitivity of network equipment, particularly for telecom and datacom requirements.

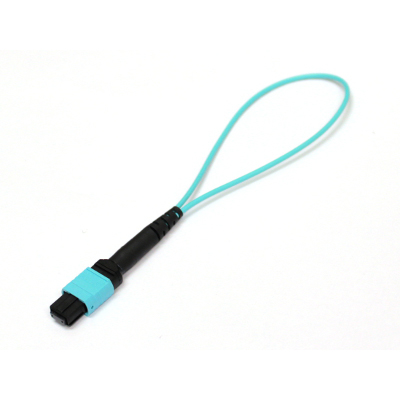

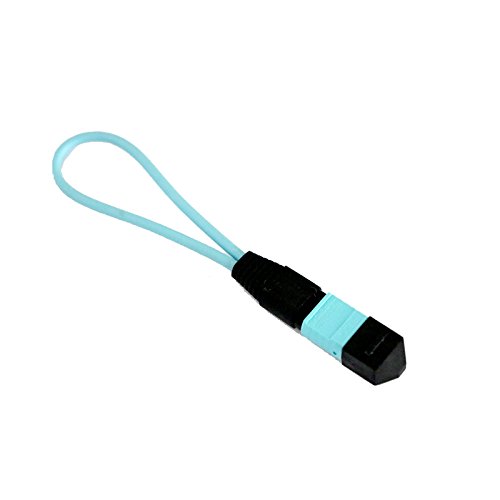

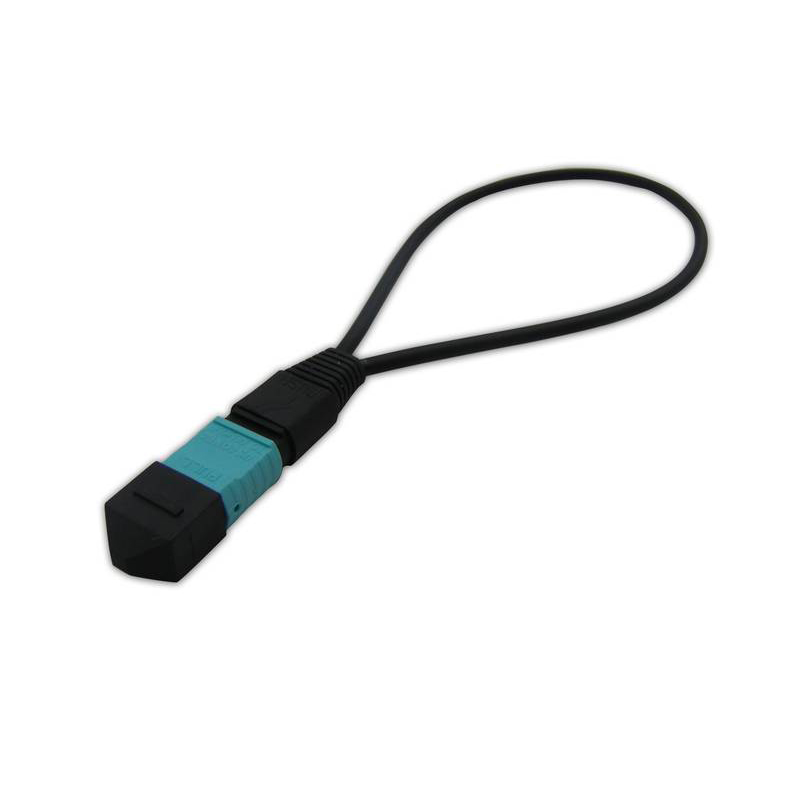

MT loopback patch cord mainly used for optical fiber communication networks. It tests and evaluates the single device, interfaces, and the optical communication lines. This patch cord can test and evaluate multiple channels simultaneously. It effectively saves the space and test costs. Depending on the application occasions, MT loopback patch cord can be divided into 6,8,12 and 24 channels. It used mini-breakout PVC/LSZH cable and high-precision MT connector, can fully guaranteed the inspection and testing process stability and accuracy.
MTP®/MPO Loopback Features
● Push-On/Pull-Off latching connector
● Either 6,8,12 and 24 fibers available
● PVC/LSZH mini-breakout cable
● Precision guide pin assures fiber alignment at mating
● Meet IEC61754-7, TIA FOCIS 5/604-5, bellcore GR-1435 requirements
● High density and economical solution for mass termination fiber
MTP®/MPO Loopback Application
● Telecommunication
● CATV
● LAN & WAN
● Network
● Broadband
● FTTP

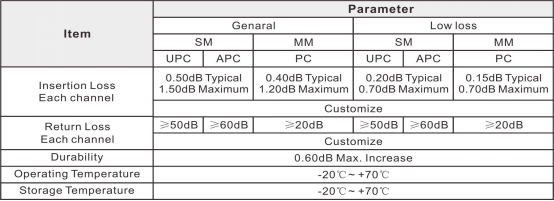

MTP®/MPO Loopback Parameter

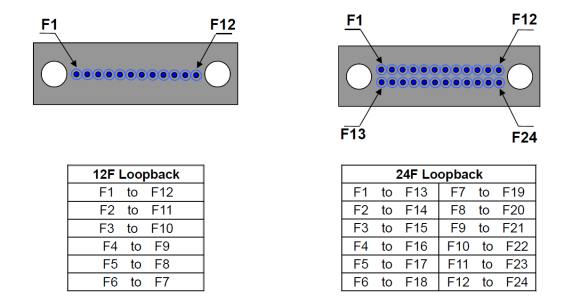

MTP®/MPO Loopback Structure
The fiber position as below tables or customized according the requirements.
