100G QSFP28 SR4 100M Extended

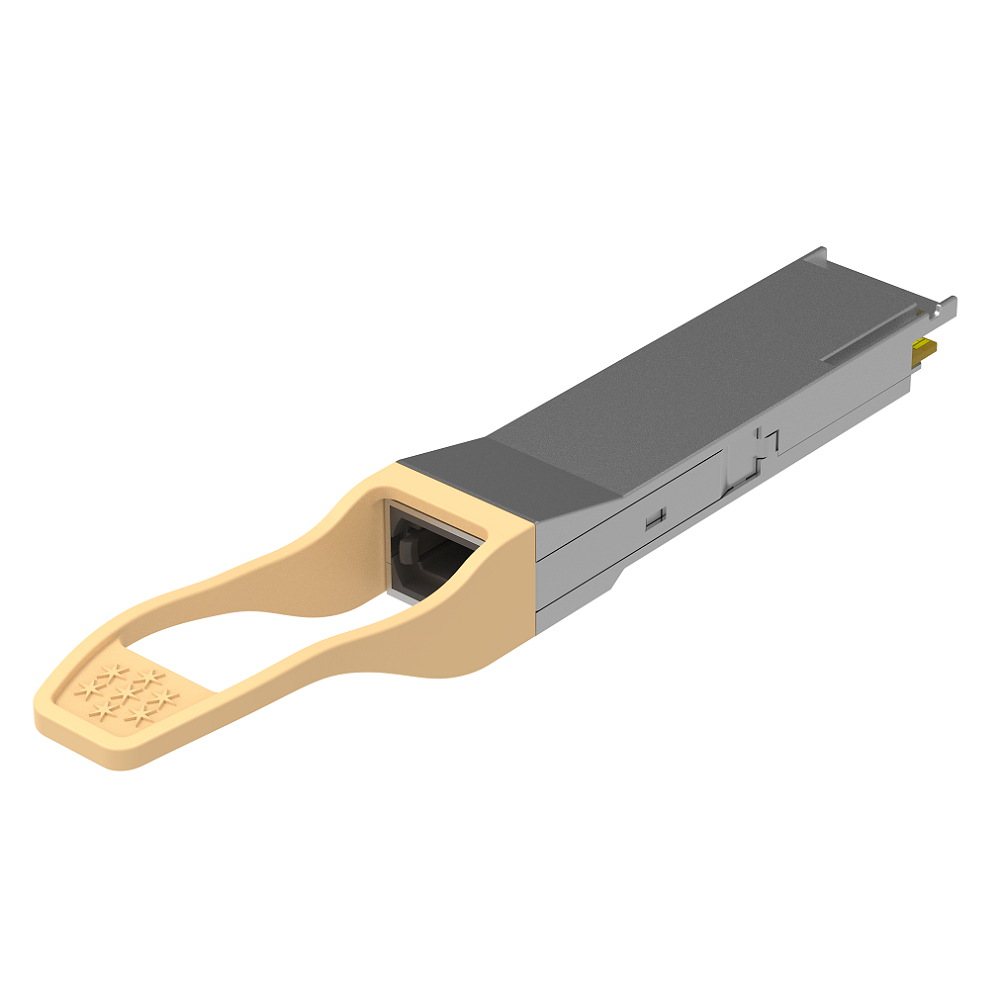

The INTCERA 100G QSFP28 SR4 100m extended optical transceiver is a four-channel, pluggable, parallel, fiber-optic QSFP28 module for 100- or 40-Gigabit Ethernet, InfiniBand FDR/EDR applications. Its operating case temperature range is 0°C to 85°C, designed for high-performance data centers.

Product description

Features:

This transceiver is a high-performance module for short-range multi-lane data communication and interconnect applications such as High-Performance Computing (HPC). It integrates four data lanes in each direction with 100Gbps bandwidth. Each lane can operate at 25Gbps up to 70m using OM3 fiber or 100m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38-contact edge type connector. The optical interface uses an 12-fiber MTP/MPO connector. This module incorporates INTCERA proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

● 4 channels full-duplex transceiver modules
● Transmission data rate up to 25.78Gbps per channel
● Support 40GE and 56G FDR data rates
● 4 channels 850nm VCSEL array
● 4 channels PIN photo detector array
● Internal CDR circuits on both receiver and transmitter channels
● Support CDR bypass
● Low power consumption < 2.5W
● Hot-pluggable QSFP28 form-factor
● Maximum link length of 70m on OM3 Multimode Fiber (MMF) and 100m on OM4 MMF
● Single MPO12 connector receptacl
● Extended operating case temperature range 0°C to +85°C
● 3.3V power supply voltage
● RoHS-6 compliant (lead free)

Application:

● IEEE 802.3bm 100GBASE-SR4
● High-Performance Computing (HPC)
