• 25G SFP28 AOC

25G SFP28 AOC

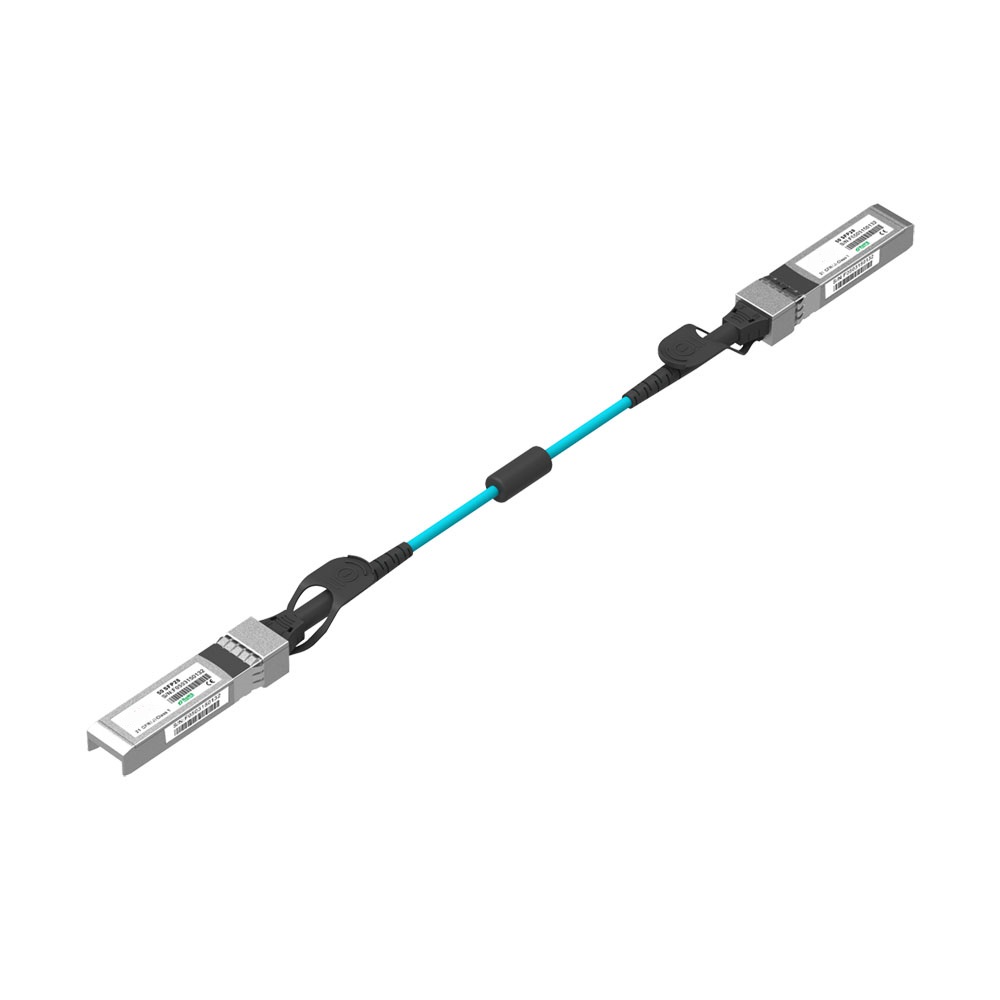

The INTCERA 25G SFP28 Active Optical Cables (AOCs) are direct-attach fiber assemblies with SFP28 connectors, compliant with 25G Ethernet IEEE 802.3by 25GBASE-SR standard. They are suitable for short distances and offer a cost-effective solution to connect within racks and across adjacent racks. The length is up to 70 meters using OM3 MMF and 100 meters using OM4 MMF.

Product description

Features:

The 25G SFP28 AOC is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 20-contact edge type connector.

● Hot-pluggable SFP28 form-factor connectors
● Transmission data rate up to 25.78Gbps
● 850nm VCSEL laser
● PIN photo-detector
● Internal CDR circuits on both receiver and transmitter channels
● Low power consumption < 1W per end
● Length up to 70m using OM3 MMF and 100m using OM4 MMF
● Operating case temperature range 0°C to +70°C
● 3.3V power supply voltage
● RoHS-6 compliant (lead free)

Application:

● IEEE 802.3by 25GBASE-SR
