40G QSFP+ AOC

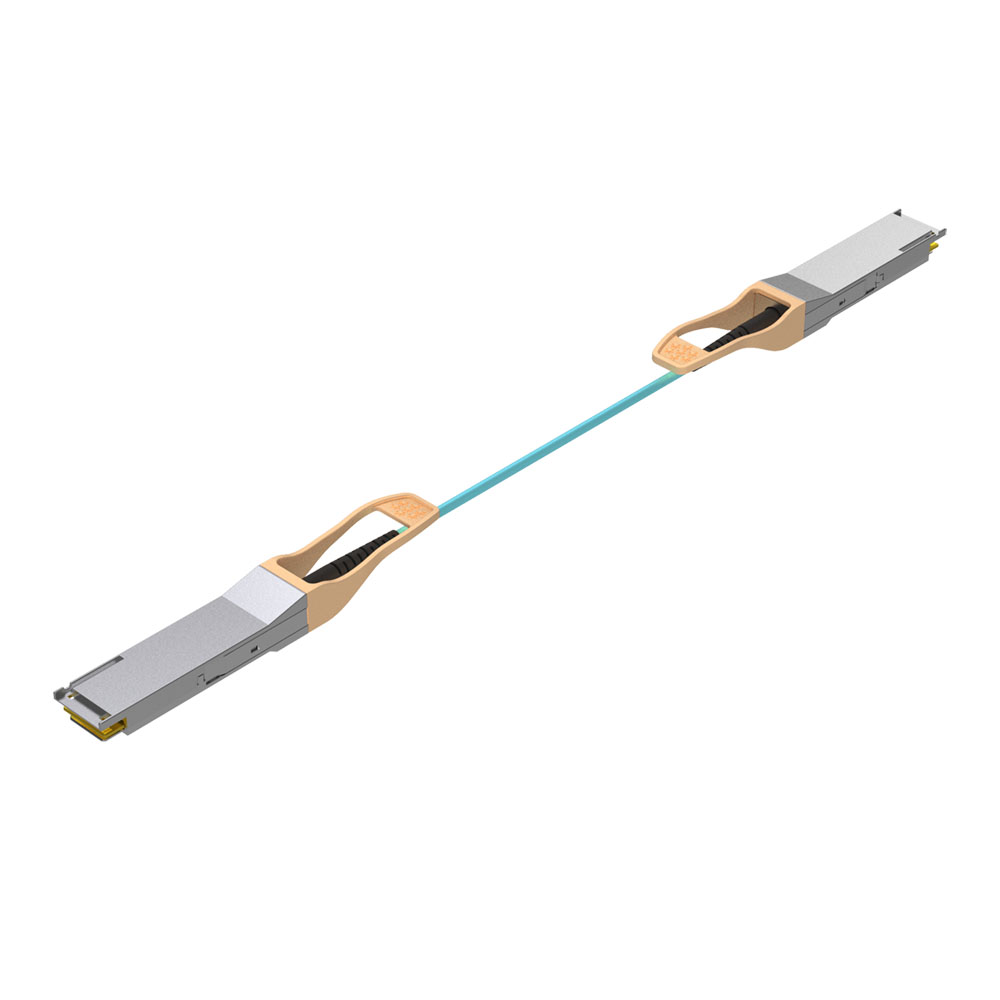

The INTCERA 40G QSFP+ Active Optic Cables (AOCs) are direct-attach fiber assemblies with QSFP+ connectors, compliant with the QSFP MSA, 40G Ethernet IEEE 802.3ba 40GBASE-SR4, and InfiniBand SDR/DDR/QDR standards. They are suitable for short distances and offer a cost-effective solution to connect within racks and across adjacent racks.

Product description

Features:

The 40G QSFP+ AOC is an assembly of 4 full-duplex lanes and each lane is capable of transmitting data at rates up to 10.3Gb/s, providing an aggregated rate of 41.2Gb/s. The length is up to 300 meters using OM3 MMF.

● 4 channels full-duplex 850nm parallel active optical cable
● Transmission data rate up to 10.3Gbps per channel
● 4 channels 850nm VCSEL array
● 4 channels PIN photo-detector array
● SFF-8436 QSFP+ compliant
● Hot-pluggable electrical interface
● Differential AC-coupled high-speed data interface
● Up to 300m on OM3 MMF
● Low power consumption < 1.5W
● Operating case temperature range 0°C to +70°C
● 3.3V power supply voltage
● RoHS-6 compliant (lead free)

Application:

● IEEE 802.3ba 40GBASE-SR4
● InfiniBand SDR/DDR/QDR
