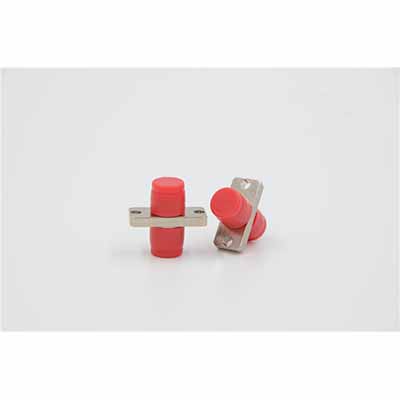

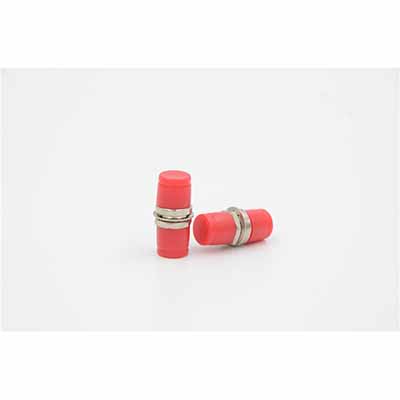

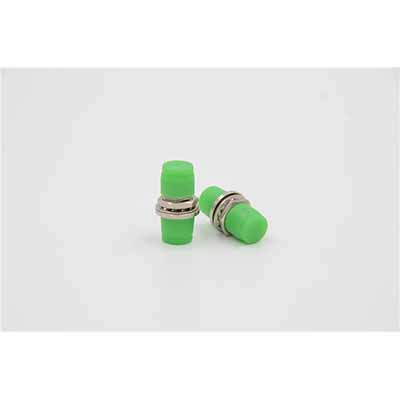

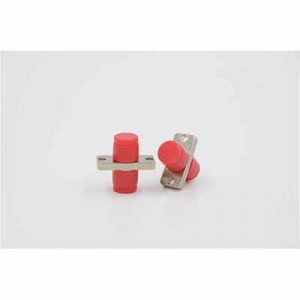

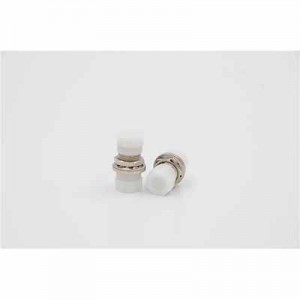

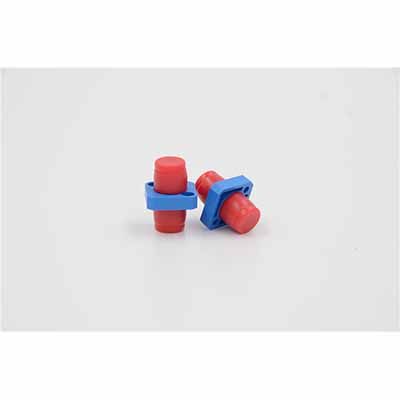

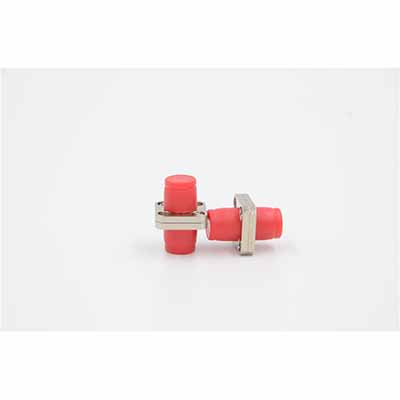

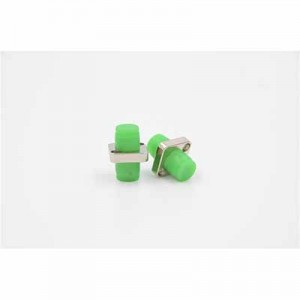

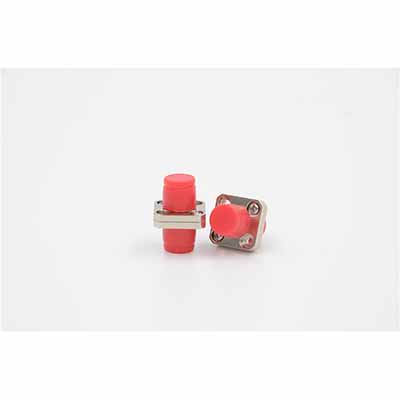

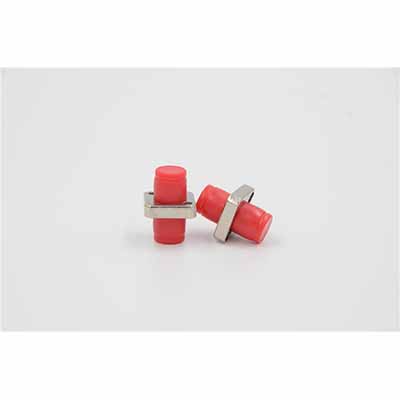

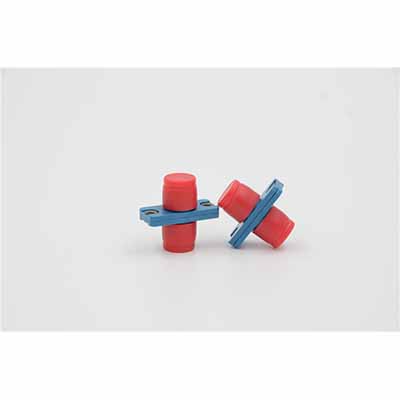

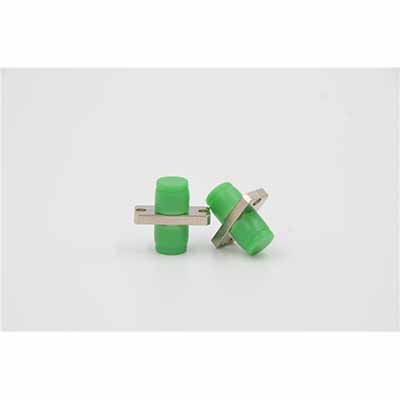

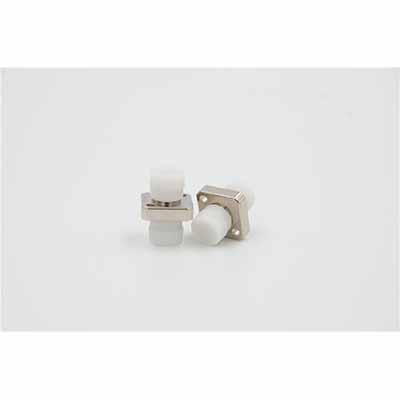

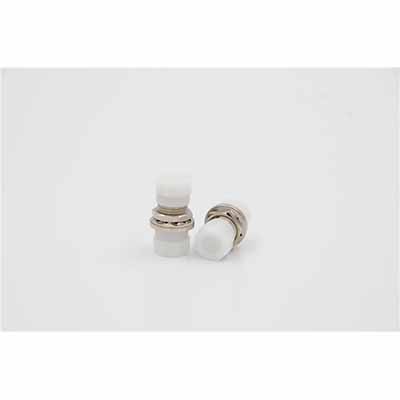

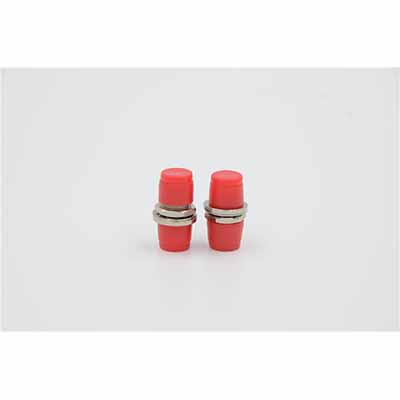

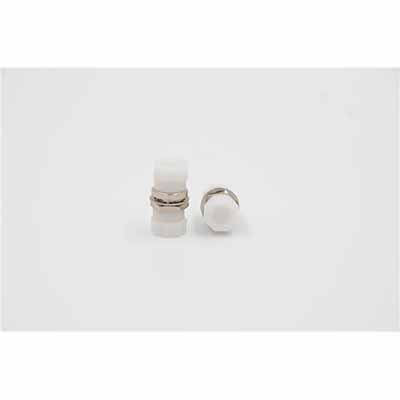

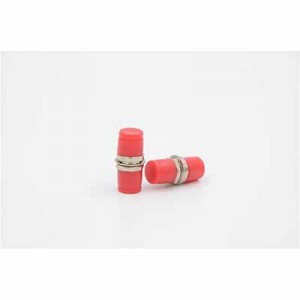

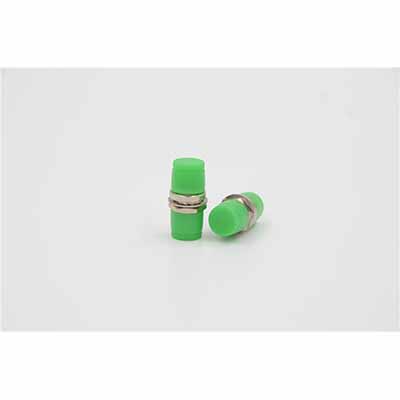

FC adapters are comprised of a metal outer body and inner assembly fitted with a precision alignment mechanism. Refer to the diagram above for dimensional information. These adaptors are precision made and manufactured to demanding specifications. The combination of a ceramic/phoshphor bronze alignment sleeves and precision metal housing provides consistent long-term mechanical and optical performance.
Features:
●Precision mechanical dimension

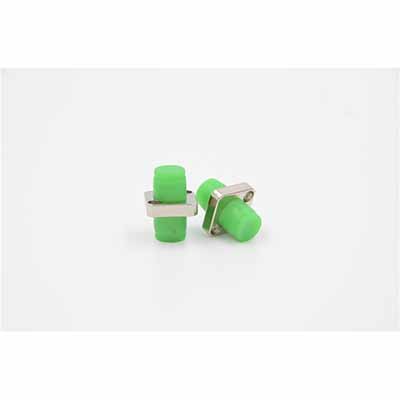

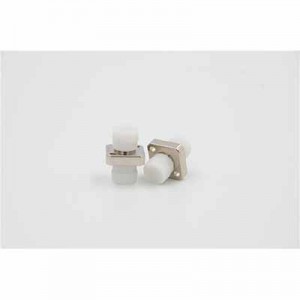

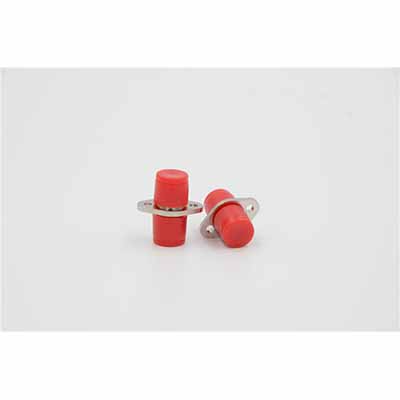

● Available in Square, D-shaped and Rectangular mount

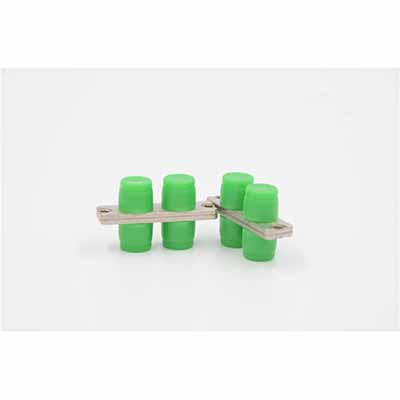

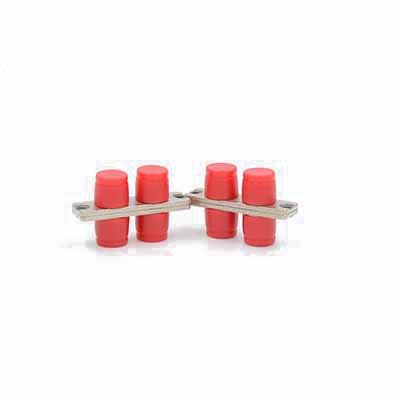

● Available in SM/MM/APC and Simplex/Duplex
● Metal Body for long life more than 1000mating
●Screw-type locking stable and reliable

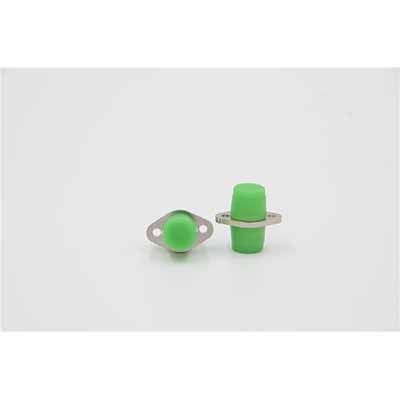

● D-shaped easily installs into panel mount
●Meets Bellcore GR-326 standard
● Compliant with IEC61754-13
●Complaint with RoHS
Application:
●Telecommunication
●CATV Network
●LAN & WAN
●Network
●Broadband
●FTTX
General Specification:
|
Parameter |
Value |
|
|
Insertion Loss |
PC: ≤0.20dB |
APC: ≤0.20dB |
|
Mating Durability(500c) |
0.20dB |
|
|
Withdrawal Force(g/f) |
100~300 |
|
|
Operating Temperature |
-40~ +80℃ |
|
|
Storage Temperature |
-40~ +80℃ |
|
