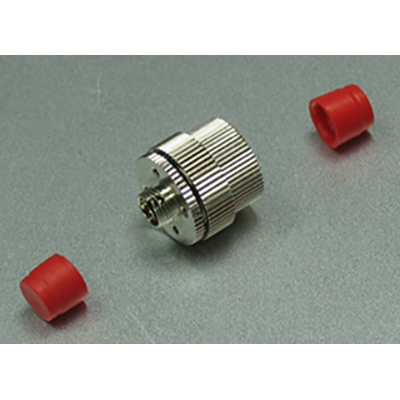

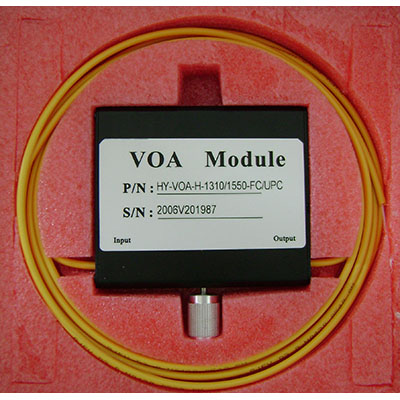

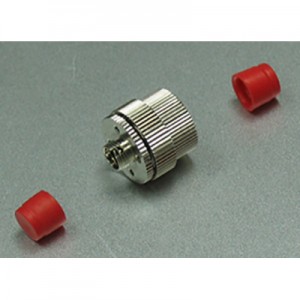

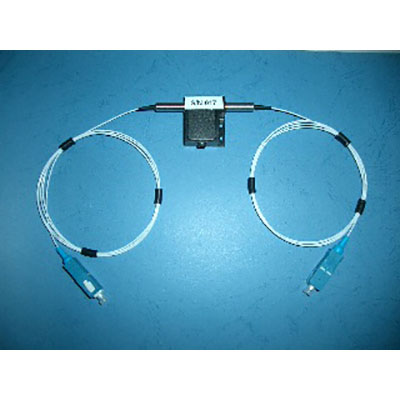

High Precision Adjustable Attenuator

Mechanically Variable fiber optic attenuator is a passive device used to reduce the amplitude of a light signal without significantly changing the wave form itself. This is often a requirement in Dense Wave Division Multiplexing (DWDM) and Erbium Doped Fiber Amplifier (EDFA) applications where the receiver cannot accept the signal generated from a high-power light source.

Product description

Features:

●Precision mechanical dimension
● Durability (up to 1W) (EDFA
● Wavelength Independent (DWDM)
● Low PDL (<0.1dB)
● Low Polarization dependence Loss
● Bellcore Compliant (GR-910-CORE)
●Complaint with RoHS

Application:

●Telecommunication
●CATV Network
●LAN & WAN
● Dense wavelength division multiplex (DWDM) system
● Optical add-drop multiplexers (OADM)
●FTTX

General Specification:

Parameter

Value

Wavelength

1310/1550nm

850nm

Attenuation Tolerance(dB)

1-9dB (±0.5dB)

1-9dB (±0.5dB)

10-20Db (±10%)

10-20Db (±10%)

Return Loss

≤45dB (PC)

≤60dB (APC)

/

Polarization dependent loss

≤0.20dB

Operating Temperature

-40~ +75℃

Storage Temperature

-40~ +75℃
