MU adaptor

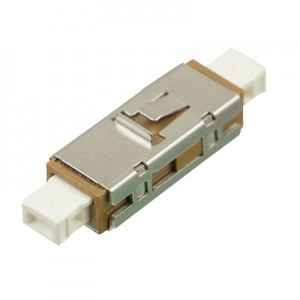

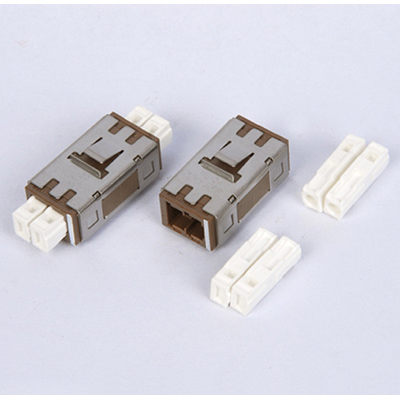

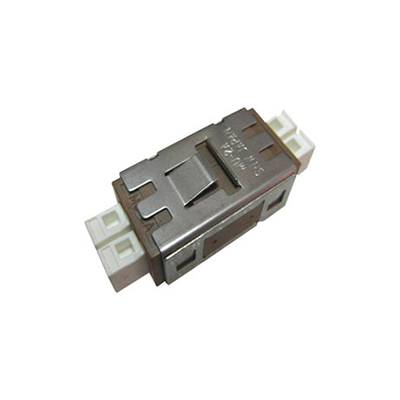

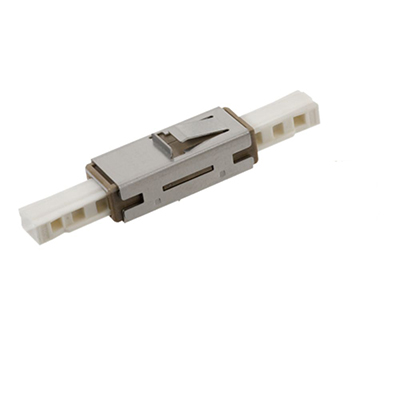

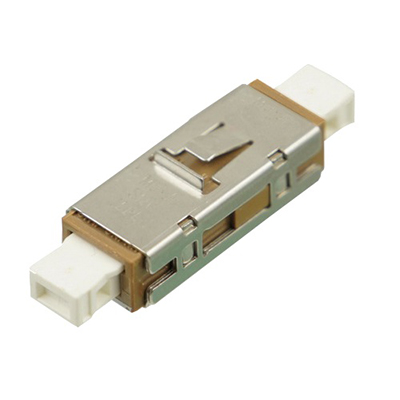

MU adapters are comprised of a polymer outer body and inner assembly fitted with a precision alignment mechanism. Refer to the diagram above for dimensional information. These adaptors are precision made and manufactured to demanding specifications. The combination of a ceramic alignment sleeves and precision moulded polymer housing provides consistent long-term mechanical and optical performance.

Product description

Features:

●Precision mechanical dimension
●Good Insertion Loss
●Simplex; Duplex and 8-way types available
●Self-retentive mechanism enables
●Compliant with IEC61754-6 and Bellcore GR-326
●Complaint with RoHS

Application:

●Telecommunication
●CATV Network
●LAN & WAN
●Network
●Broadband
●FTTX

General Specification:

Parameter

Value

Insertion Loss

≤0.20dB

Mating Durability(500c)

0.20dB

Withdrawal Force(g/f)

100~300

Operating Temperature

-40~ +80℃

Storage Temperature

-40~ +80℃
