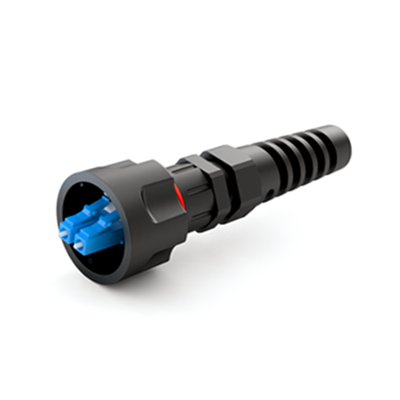

A waterproof optical cable is the cable that one of its head be added with the waterproof connector. It is designed to exceed the requirements of ODVA. The Ingress Protection Rating of the waterproof connector meets IP68 environment. It can prevent the ingress of dust completely, besides it can be used in the environment with water for a while. The connector type can be SC, LC, MPO, and the length of cable can be specified. The Waterproof Optical Cable Patch is designed to use solution in industrial fiber to the antenna (FTTA), or any other harsh environmental applications.
The connector is designed according to the IEC 61076-3-106 interface standard, which allows mating to other similar mechanical locking systems.
Features:
●Precision mechanical dimension
● Easy push-pull installation
● Ingress Protection Rating: IP68
● Suitable for environment with water

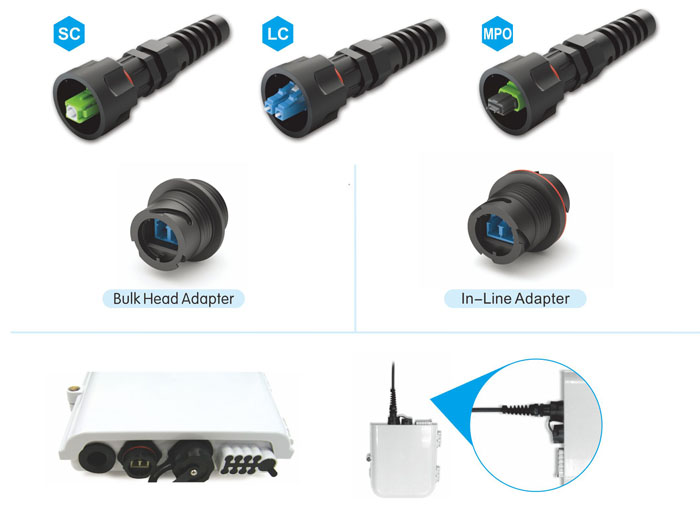

● SC, LC, MPO, connector is optional
●Meets Bellcore GR-326 standard
●Compliant with RoHS
Application:
●Telecommunication
●CATV Network
●LAN & WAN
●Network
●Broadband
●FTTX
