Fiber Optic Enclosure

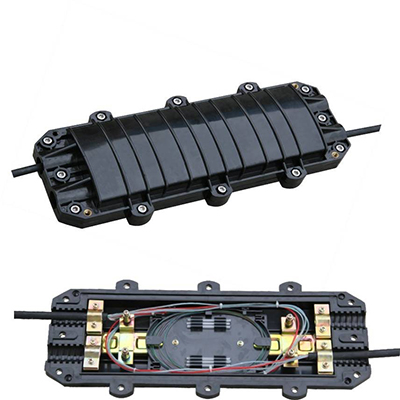

Fiber Optic Enclosure Horizontal/inline type enable splicing and branching of optical cable coming from Telecommunication Central Office and cable from detached one family houses. Offers wide range of splice enclosures with different capacities from 12cores to 120cores.It is made of ABS plastic and with the mechanical sealing structure filled with the sealing material. The external component and fastening piece are all made of high quality stainless steel. It can be opened after sealing and can be reused without changing sealing material.

Product description

Features:

● Advanced internal structure design, thus fiber suffering no attenuation
● Enough for winding and storing fibers
● Easy and fast to increase and reduce splice tray
● Innovative elastic integrated seal fitting
● Adopting PC material for plastic parts and excellent steel for the external fasters and structural parts
● With the function of reuse and capacity expansion for many times
● With the function of connection and disconnection for electrical connection for the in/out FO cables

Application:

● Telecommunication
● LAN/WAN Networks
● CATV
● FTTX
● Aerial, Direct-buried, Wall-mounting and Duct-mounting

Ordering Information:

Order P/N

Product Description

Dimension

INT-ENC-012

Fiber Optic Enclosure-ENC12C 424x176x106mm

INT-ENC-024

Fiber Optic Enclosure-ENC24C 424x176x106mm

INT-ENC-048

Fiber Optic Enclosure-ENC48C 424x176x106mm

INT-ENC-06

Fiber Optic Enclosure-ENC96C 424x176x106mm

INT-ENC-120

Fiber Optic Enclosure-ENC120C 424x176x106mm
Note: Available for customized design.
