Fiber Optic Termination Box

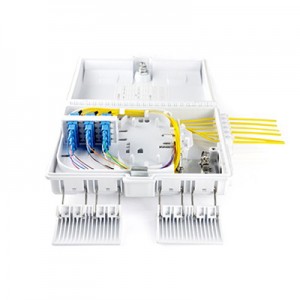

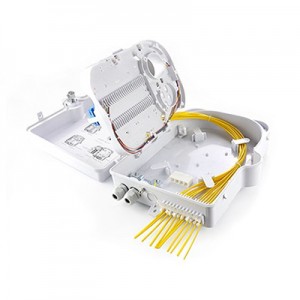

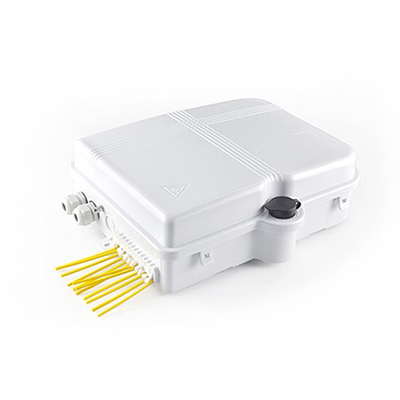

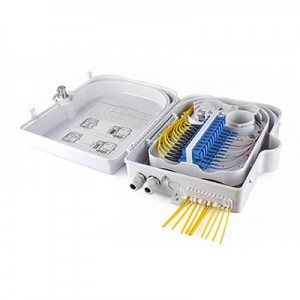

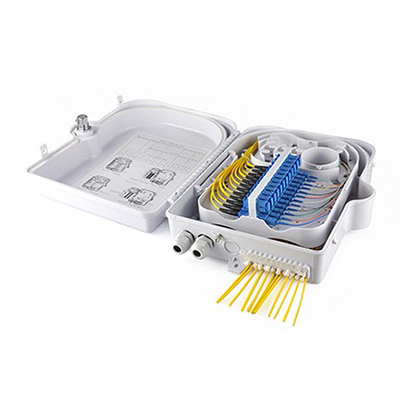

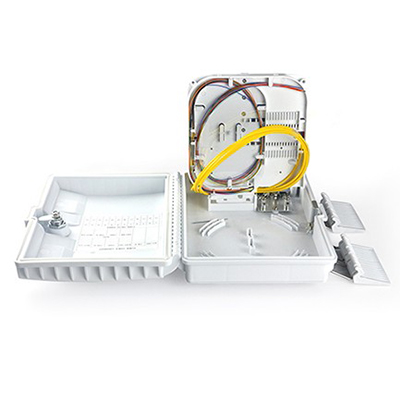

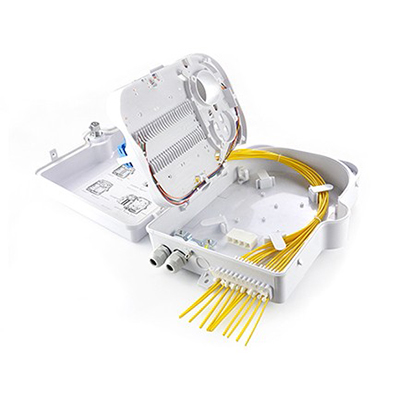

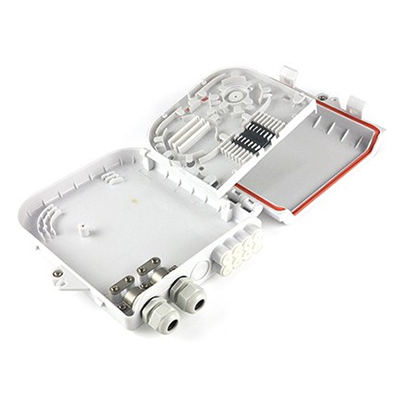

Fiber Optic Termination Box is used as a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Product description

Features:

● Water-proof design with IP65 Protection level
● Easy to maintain and extend the capacity
● Manage fibers in a reasonable fiber radius condition
● Integrated with splice cassette and cable management rods
● Suitable for the fusion splice or mechanical splice
● Easy cable management

Application:

● Telecommunication
● LAN/WAN Networks
● CATV
● FTTX

Ordering Information:





Order P/N

Productescription

Dimension

 →

INT-TB-LC12

Fiber Optic Termination Box LC 12Fibers 304x236x104mm


INT-TB-LC24

Fiber Optic Termination Box LC 24Fibers 304x236x104mm


INT-TB-SC12

Fiber Optic Termination Box SC 12Fibers 304x236x104mm


INT-TB-SC24

Fiber Optic Termination Box SC 24Fibers 304x236x104mm
Note: Available for customized design.
