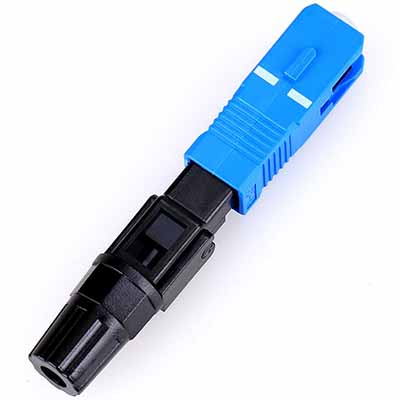

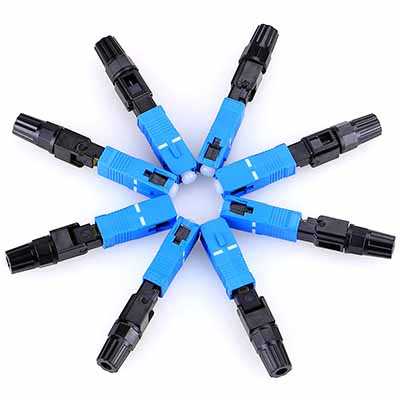

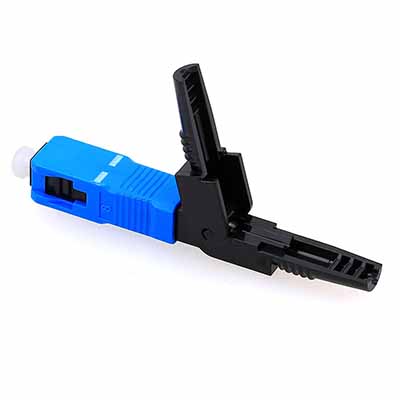

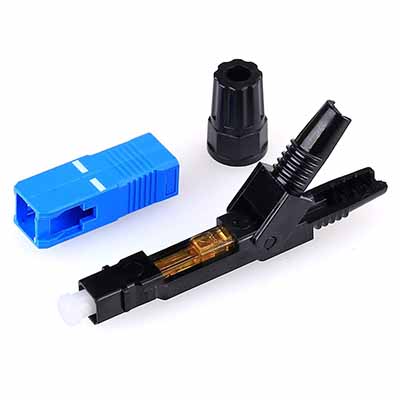

The SC connector is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. This technology provides a fast, secure and reliable SC-compatible optical fiber termination for either multimode or singlemode cable.
Features:
●Precision mechanical dimension
●Good Insertion Loss
●MM/SM/APC Available
●Ultra low back reflection
●Fast, easy to installation
●Complaint with RoHS
Application:
●Telecommunication
●Used to restore and maintenance when fiber-cut
●Distribution in LAN area
●FTTX project processing
General Specification:
|
Parameter |
Value |
|
|
Insertion Loss |
PC: ≤0.30dB |
APC: ≤0.30dB |
|
Mating Durability(500c) |
0.25dB |
|
|
Temperature Stability |
≤0.35dB |
|
|
Assembly Time |
≤50s |
|
|
Operating Temperature |
-40~ +80℃ |
|
|
Storage Temperature |
-40~ +80℃ |
|
