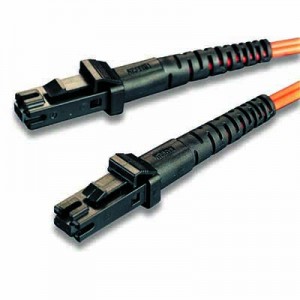

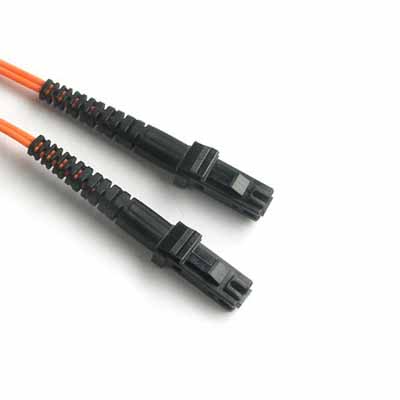

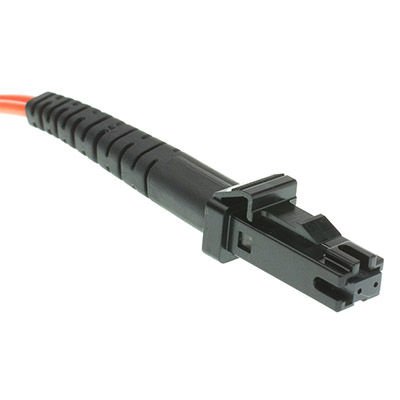

MTRJ connector has a MT ferrule with either a PC end-face, and provides optimum insertion and return loss. The MTRJ connector is used on small diameter mini-cordage (1.8mm) as well as 1.6mm cable. MTRJ Connectors are available in pre-assembled or kit (unassembled) formats. They feature self-adjusting panel latches and a choice of mounting orientations with labeled polarity.
Features:
●Precision mechanical dimension
●Installable in conventional RJ-45 face places
●SM/MM available
●Intuitive RJ-45 type latching mechanism plug and jack design
●Complaint with RoHS
Application:
●Telecommunication
●CATV Network
●LAN & WAN
●Network
●Broadband
●FTTX
General Specification:
|
Parameter |
Value |
|
|
Insertion Loss |
SM PC: ≤0.30dB |
MM PC: ≤0.30dB |
|
Mating Durability(500c) |
0.25dB |
|
|
Temperature Stability |
≤0.35dB |
|
|
Operating Temperature |
-40~ +80℃ |
|
|
Storage Temperature |
-40~ +80℃ |
|
